Products
-
×
Trough-Type Cable Tray
Open full product pageTrough type cable trays are trough-shaped components made from a single sheet of steel, with a structure similar to a channel. They are used to support, protect, and organize the laying of cables, lines, and pipes. They offer strong protection, and their fully enclosed structure effectively isolates them from external environmental interference such as dust, water vapor, oil, and mechanical impact.
-
×
Ladder Cable Tray
Open full product pageLadder-type cable trays are trapezoidal frame structures composed of side beams and crossbars, used to support, protect, and organize the laying of cables. The open structure greatly increases the contact area between the cables and the air, and the natural airflow formed by the crossbars can effectively reduce the surface temperature of the cables and increase their current carrying capacity. The cable status can be directly observed without removing the cover, which facilitates the addition, removal, and maintenance of cables, resulting in high maintenance efficiency and low cost.
-
×
Arc-Shaped Ladder Cable Tray
Open full product pageThe Arc-Shaped Ladder Cable Tray features a curved trapezoidal frame structure composed of side beams and crossbars. This structure allows for smooth cornering during cabling, preventing cable breakage and stress concentration. The open design ensures full contact between cables and air, and the crossbars create a natural airflow channel, effectively reducing cable surface temperature and increasing current carrying capacity. Cable status can be visually inspected without removing the cover, facilitating addition, removal, inspection, and maintenance operations, thus improving efficiency and reducing costs.
-
×
FRP Cable Trays (Fiberglass Cable Trays)
Open full product pageFRP cable trays (fiberglass cable trays) are a new type of cable support device made primarily of glass fiber reinforced plastic, combined with flame retardants, stainless steel shielding mesh, and other materials. They are manufactured using a molding process, with core materials including glass fiber (reinforcing material), resin (matrix material), and auxiliary materials. The glass fiber used is either medium-alkali fiber or, more importantly, alkali-free fiber with superior performance.
-
×
FRP Cable Tray (Fiberglass Ladder Cable Tray)
Open full product pageFRP cable trays are made of high-strength glass fiber reinforced plastic, featuring lightweight, corrosion resistance, high temperature resistance, and excellent insulation properties. Their open structure ensures good heat dissipation for cables while facilitating wiring and maintenance. Suitable for chemical, marine, wastewater treatment, and other corrosive environments, they effectively extend cable life, reduce maintenance costs, and provide a reliable solution for cable laying in industrial and special environments.
-
×
Powder Coated Ladder Cable Tray
Open full product pagePowder-coated ladder-type cable trays, based on traditional ladder-type cable trays, feature a high-quality powder coating, providing excellent corrosion resistance, rust prevention, and weather resistance. Their open structure ensures ample contact between cables and air, effectively reducing cable surface temperature and increasing current-carrying capacity.
Simultaneously, they allow for easy addition, removal, and maintenance of cables, resulting in high maintenance efficiency and low cost. Suitable for various environments, including industrial plants, commercial buildings, and power and telecommunications installations, they provide reliable protection and management solutions for cable laying.
-
×
Ladder Cable Tray
Open full product pageLadder-type cable trays are trapezoidal frame structures composed of side beams and crossbars, used to support, protect, and organize the laying of cables. The open structure greatly increases the contact area between the cables and the air, and the natural airflow formed by the crossbars can effectively reduce the surface temperature of the cables and increase their current carrying capacity. The cable status can be directly observed without removing the cover, which facilitates the addition, removal, and maintenance of cables, resulting in high maintenance efficiency and low cost.
-
×
Arc-Shaped Ladder Cable Tray
Open full product pageThe Arc-Shaped Ladder Cable Tray features a curved trapezoidal frame structure composed of side beams and crossbars. This structure allows for smooth cornering during cabling, preventing cable breakage and stress concentration. The open design ensures full contact between cables and air, and the crossbars create a natural airflow channel, effectively reducing cable surface temperature and increasing current carrying capacity. Cable status can be visually inspected without removing the cover, facilitating addition, removal, inspection, and maintenance operations, thus improving efficiency and reducing costs.
-
×
FRP Cable Tray (Fiberglass Ladder Cable Tray)
Open full product pageFRP cable trays are made of high-strength glass fiber reinforced plastic, featuring lightweight, corrosion resistance, high temperature resistance, and excellent insulation properties. Their open structure ensures good heat dissipation for cables while facilitating wiring and maintenance. Suitable for chemical, marine, wastewater treatment, and other corrosive environments, they effectively extend cable life, reduce maintenance costs, and provide a reliable solution for cable laying in industrial and special environments.
-
×
Powder Coated Ladder Cable Tray
Open full product pagePowder-coated ladder-type cable trays, based on traditional ladder-type cable trays, feature a high-quality powder coating, providing excellent corrosion resistance, rust prevention, and weather resistance. Their open structure ensures ample contact between cables and air, effectively reducing cable surface temperature and increasing current-carrying capacity.
Simultaneously, they allow for easy addition, removal, and maintenance of cables, resulting in high maintenance efficiency and low cost. Suitable for various environments, including industrial plants, commercial buildings, and power and telecommunications installations, they provide reliable protection and management solutions for cable laying.
-
×
Large-Span Double-Ladder Side Ladder Cable Tray
Open full product pageLarge-span double-ladder side ladder cable trays employ a double-sided beam and ladder-type crossbar structure design, capable of handling cable laying needs with larger spans while ensuring structural stability and safety. The open design promotes air circulation, effectively reducing cable surface temperature and increasing current-carrying capacity; it also facilitates cable addition, removal, inspection, and maintenance operations, offering high efficiency and low cost. Widely used in large-scale projects such as industrial plants, warehousing facilities, and power and communication systems, it provides a reliable solution for complex cable routing.
-
×
Aluminum Profile Ladder Cable Tray
Open full product pageAluminum Profile Ladder Cable Tray Features:
Lightweight and High-Strength: Aluminum alloy has only 1/3 the density of steel. Aluminum alloy cable trays are 60% lighter than steel cable trays while maintaining high strength, reducing the load on building structures.
Excellent Corrosion Resistance: Through anodizing, a dense oxide film is formed on the surface, increasing resistance to salt spray corrosion by more than 3 times. Suitable for highly corrosive environments such as coastal areas and chemical plants, it can also operate stably for long periods in damp underground environments.
Excellent Electromagnetic Shielding and Heat Dissipation: Aluminum alloy has good electrical and thermal conductivity, exhibiting excellent performance in electromagnetic shielding and heat dissipation. It effectively reduces signal interference, and through reasonable structural design, it can improve cable ventilation and extend equipment life.
-
×
Wire Mesh Cable Tray
Open full product pageMesh cable trays are cable trays made of steel wire welded into a grid structure, emphasizing lightweight design, high ventilation, and ease of maintenance.
They can support multiple low-voltage cables (such as network cables and signal cables) as well as small-diameter power cables (≤120 mm²); and they do not shield electromagnetic signals, making them suitable for communication, data transmission, and other scenarios sensitive to signal interference.
- Mesh cable trays weigh only 1/5 of traditional cable trays, making them lightweight and easy to install.
- Their open structure allows for natural ventilation and heat dissipation of cables.
- Various bends can be fabricated on-site from straight sections.
- Weicheng mesh cable trays offer a variety of surface treatments suitable for both indoor and outdoor environments.
- Cables are visible, making upgrades and maintenance easier.
-
×
Fiber Optic Cable Tray
Open full product pageThe fiber optic cable trays and covers are made of flame-retardant PVC and ABS materials, while the accessories and accessory covers are made of flame-retardant ABS material. The corrugated tubes protecting the optical cables are primarily composed of polypropylene (PP). All plastic parts meet the FV-0 flame-retardant rating in GB/T2408-2008, ensuring that no toxic gases are produced in extreme environments. The fiber optic cable trays are yellow, with the color code Pantone 123C.
- Enclosed structure fully protects the optical cable from damage.
- The main body is made of flame-retardant engineering plastic with a smooth, aesthetically pleasing surface.
- Ensuring the fiber optic cable’s curvature radius is >40 mm throughout.
- In addition to fixed fiber outlets, movable fiber outlets are also available to meet the needs of equipment room expansion.
- Reliable connections are available, with multiple fixing methods, including hanging installation, bottom support installation, or fixed installation with other cable trays.
- Fiber storage is provided within the cable trays as needed, and the cable routing can be changed.
-
×
Aluminum Cable Ladder
Open full product pageAluminum cable ladder are widely used in data center cabling, offering aesthetically pleasing and easily manageable cabling. They can be installed in various ways, including ceiling mounting, wall mounting, rack top mounting, and under anti-static flooring, allowing users to choose the most suitable option for their data center needs. Aluminum alloy cable trays are also known as aluminum alloy cable management systems or aluminum alloy ladder racks.
- Aesthetics: The aluminum alloy has a uniform and delicate texture, and the surface is oxidized, making the whole system beautiful and elegant.
- Good load-bearing capacity: The aluminum alloy is hard and can safely bear 300 kg per meter.
- Open type: The cable is directly fixed on the aluminum alloy cable tray, which is convenient for future cable maintenance or addition.
- Easy installation: It can be installed in single or double layers without special tools. It can be installed with an adjustable wrench.
- Material: High-quality engineering aluminum alloy material with a yield strength >153N.
- Hanger: (1) Ф10-16mm metal wire rod; (2) aluminum alloy main beam; (3) aluminum alloy crossbar.
- Fixing: Expansion bolts are used and driven into the concrete floor slab, cement beam, cement column, or brick-concrete wall.
- Size: The cable tray is 3000 mm long and 200 mm to 1000 mm wide. Common specifications for computer rooms: 400 mm-600 mm wide.
-
×
U-Shaped Steel Cable Ladder
Open full product pageU-shaped steel cable ladders are made of high-quality cold-rolled steel plates with powder coating. Available colors include blue and classic gray. They offer good load-bearing capacity, are simple and economical, and are corrosion-resistant, making them the preferred product for cabling in computer rooms and data centers of telecommunications operators such as China Telecom, China Mobile, China Unicom, and China Tietong.
- Material: High-quality cold-rolled steel plate
- Load Capacity: 300 kg per meter
- Suspension Rods: (1) Ф10-16mm threaded rods; (2) U-shaped steel main beams
- Fixing: Expansion bolts are used, driven into concrete slabs, cement beams, cement columns, and brick-concrete walls.
- Dimensions: Cable tray length 2500mm or 3000mm, width 200mm to 1000mm
- Common computer room specifications: 400mm x 600mm wide
- Surface: Powder coating or hot-dip galvanizing is available. Powder coating colors include Huawei gray or Telecom blue; other colors can be customized.
-
×
Cable Tray Seismic Bracing
Open full product pageCable tray seismic bracing is a support device that limits the displacement of electromechanical pipelines (such as water pipes, cable trays, and air ducts) and controls vibration during an earthquake, preventing pipelines from falling or being damaged. Its core function is to ensure the safety of electromechanical systems during an earthquake.
-
×
Cable Tray Hangers
Open full product pageThe cable tray hangers installation is suitable for horizontal hoisting of small-sized components. One frame is equipped with one lifting rod and one set of combined expansion joints.
-
×
Cable Tray Wall Bracket
Open full product pageThe cable tray wall brackets installation is suitable for cable trays placed horizontally against a wall. One bracket comes with two sets of expansion joints; larger brackets come with four sets.
-
×
Crossbeam
Open full product pageCrossbeam installation is suitable for horizontal hoisting of large-size cable trays. One crossarm is equipped with two hangers and two sets of combined expansion joints.
-
×
Stand Off Bracket Accessories
Open full product pageThe stand off bracket accessories trestle installation is suitable for cable trays used vertically against the wall (raised by 5 cm). One trestle is equipped with two sets of combined expansion joints; the seven-piece buckle is used to fix the cover plate of the vertical shaft cable tray.
-
×
Powder Coated Metal Conduit
Open full product pagePowder coated metal conduits are traditional metal pipes that have undergone high-quality powder coating, resulting in excellent corrosion resistance, rust prevention, and weather resistance. They are used to protect and guide cable routing, featuring a robust structure that is easy to install and effectively extends cable life. The powder-coated surface not only enhances the aesthetics of the conduits but also adapts to various industrial, commercial, and building environments, providing a reliable and safe passage for cable laying.
-
×
Metal Conduit
Open full product pageIt is a rigid conduit used to protect and guide cables. Its robust and durable structure effectively prevents cables from being damaged by pressure, tension, or external forces. Suitable for various wiring needs in industrial, commercial, and building environments, it is easy to install and ensures long-term safe operation of cables.
-
×
Metal Junction Box
Open full product pageMetal junction boxes are rigid enclosures used to protect and connect cables and wiring. They are robust, fire-resistant, and moisture-proof, ensuring safe and reliable wiring. Suitable for residential, commercial, and industrial environments, they facilitate wiring management and maintenance, enhancing the safety and durability of electrical systems.
Products Application
Used in power, telecom, construction, and industrial automation for safe and efficient cable management.

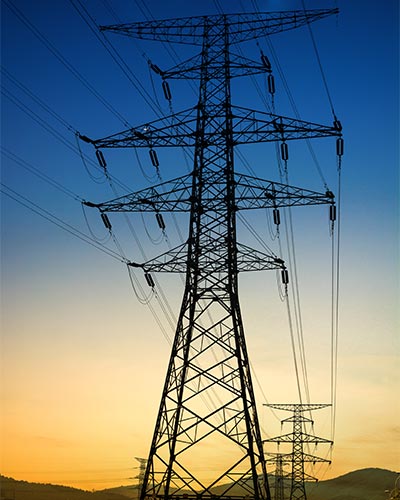

Power & Energy
Efficient and safe routing of electrical cables in power plants and substations.

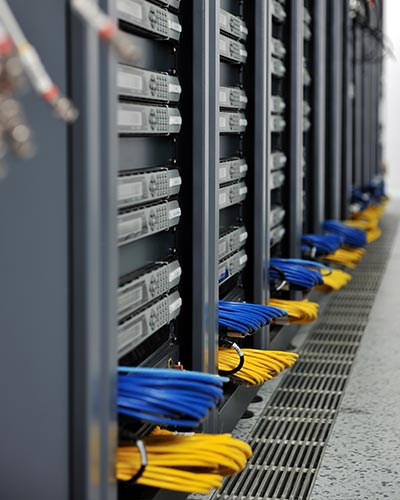

Telecommunications
Organized cabling for data centers, IT rooms, and communication networks.

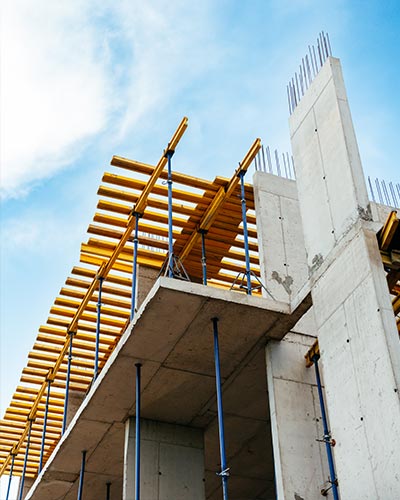

Construction & Infrastructure
Reliable solutions for commercial buildings, industrial facilities, and public projects.

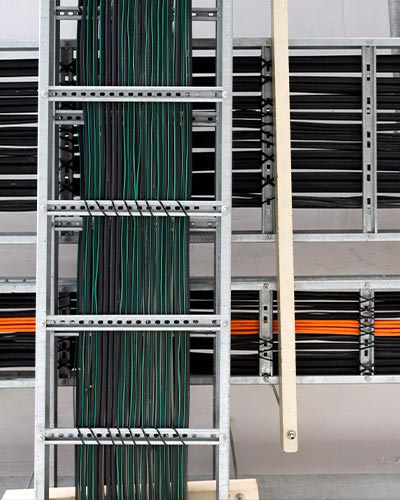

Industrial Automation
Streamlined cable management for factories and automated production lines.
Power & Energy
Efficient and safe routing of electrical cables in power plants and substations.
Telecommunications
Organized cabling for data centers, IT rooms, and communication networks.
Construction & Infrastructure
Reliable solutions for commercial buildings, industrial facilities, and public projects.
Industrial Automation
Streamlined cable management for factories and automated production lines.
Frequently Asked Questions
Used in power, telecom, construction, and industrial automation for safe and efficient cable management.
Can your products be customized?
Yes, our cable management solutions can be tailored in terms of size, material, and configuration to meet specific project requirements.
What industries are your products suitable for?
Our products are widely used in power plants, industrial facilities, data centers, commercial buildings, and infrastructure projects.
How do you ensure product quality?
We maintain strict quality control with precision manufacturing, corrosion-resistant finishes, and testing to meet international standards.
Do you provide installation guidance or support?
Yes, we offer technical support, installation guidelines, and solutions to help clients ensure proper setup and long-term reliability.
How can I request a quote?
You can contact us via our website form, email, or phone, and our sales team will provide a prompt and detailed quotation.
